Receivables ageing

An ageing table answers the credit controller’s first question: who owes us money, and how late is it? Each row is a customer. The columns split what they owe by how many days it is past the due date, and colours draw the eye to the late buckets.

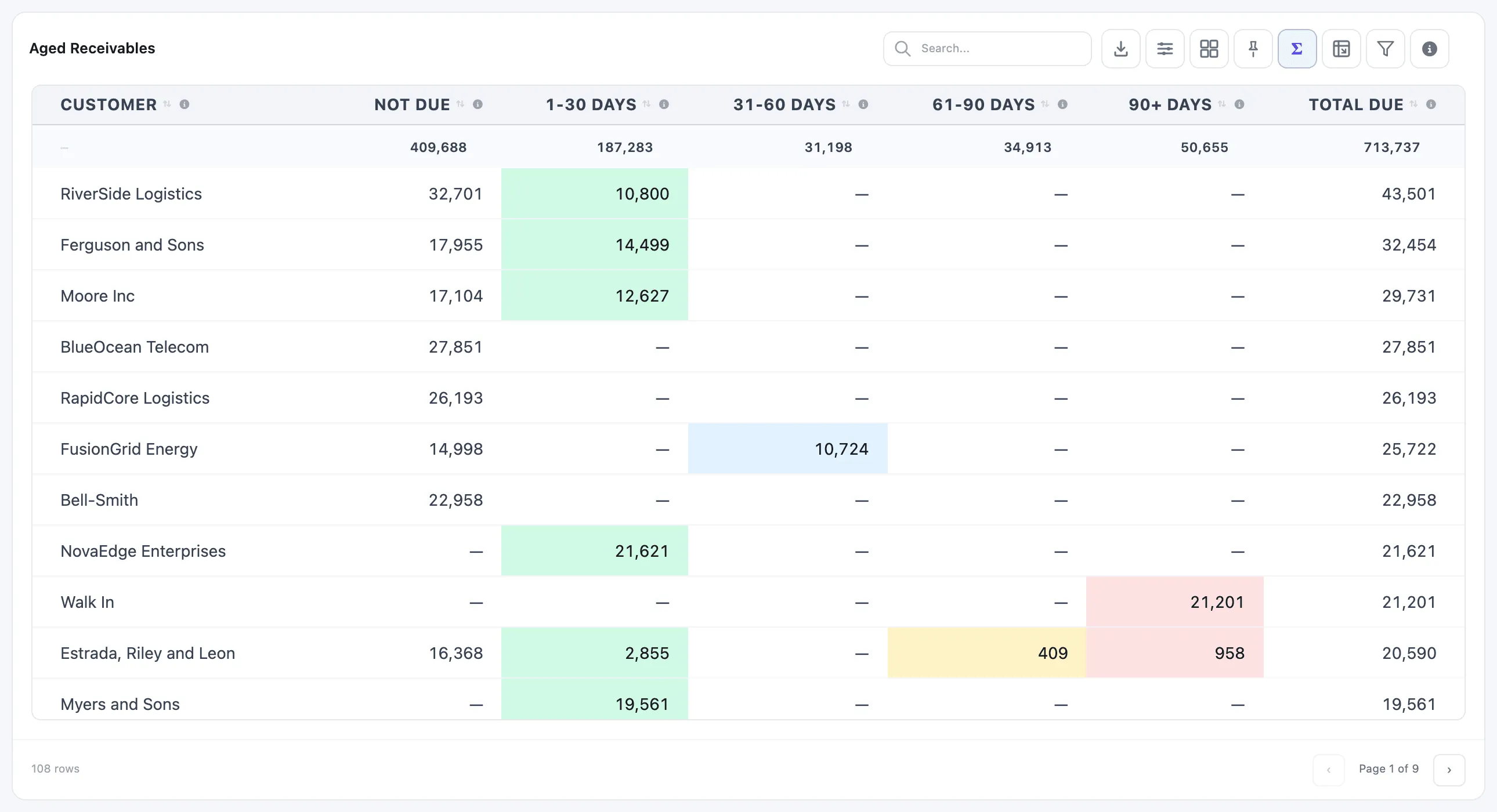

As of today. The totals row at the top adds up to 713,737, everything customers owe.

The Receivables Ageing table on the Invoicing & Receivables dashboard is the same idea per sales team instead of per customer.

1. The dataset

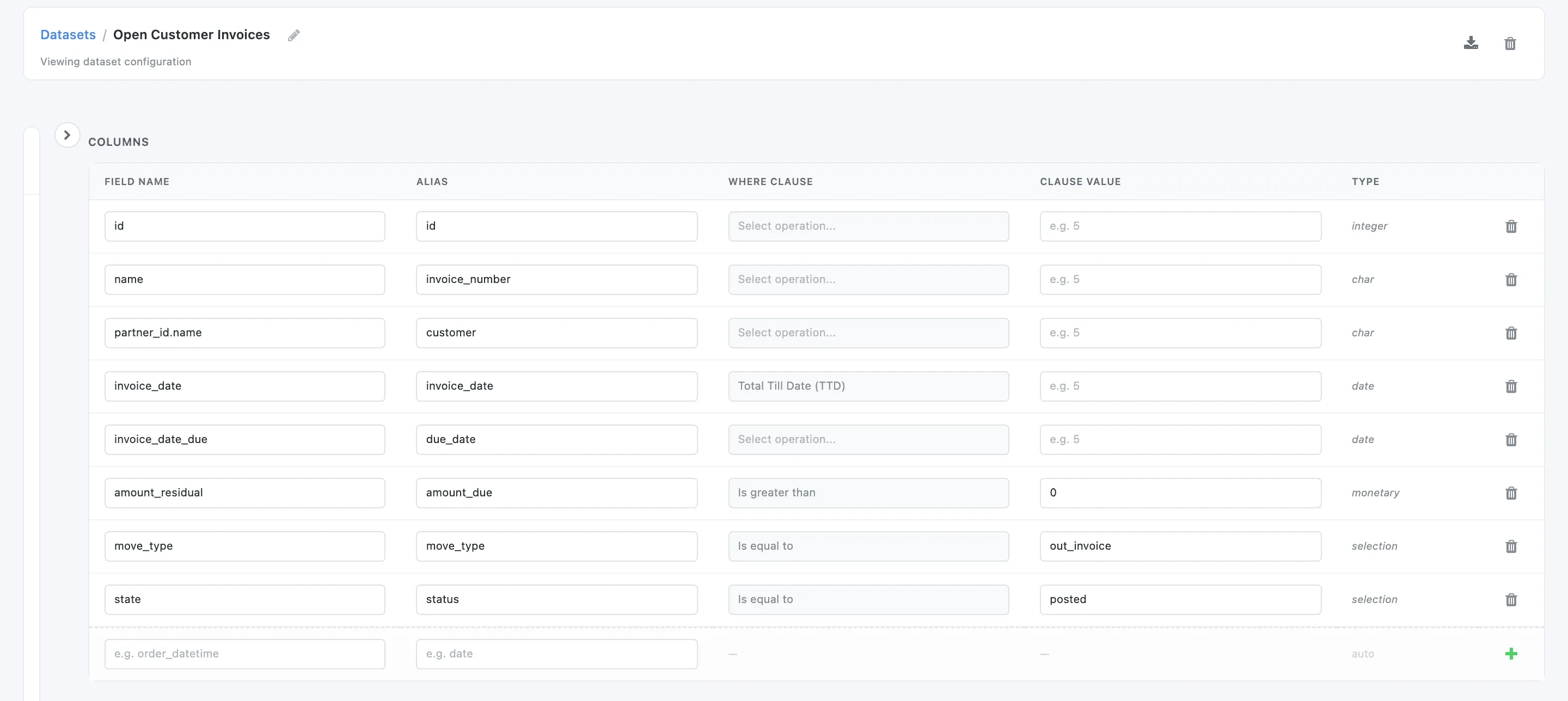

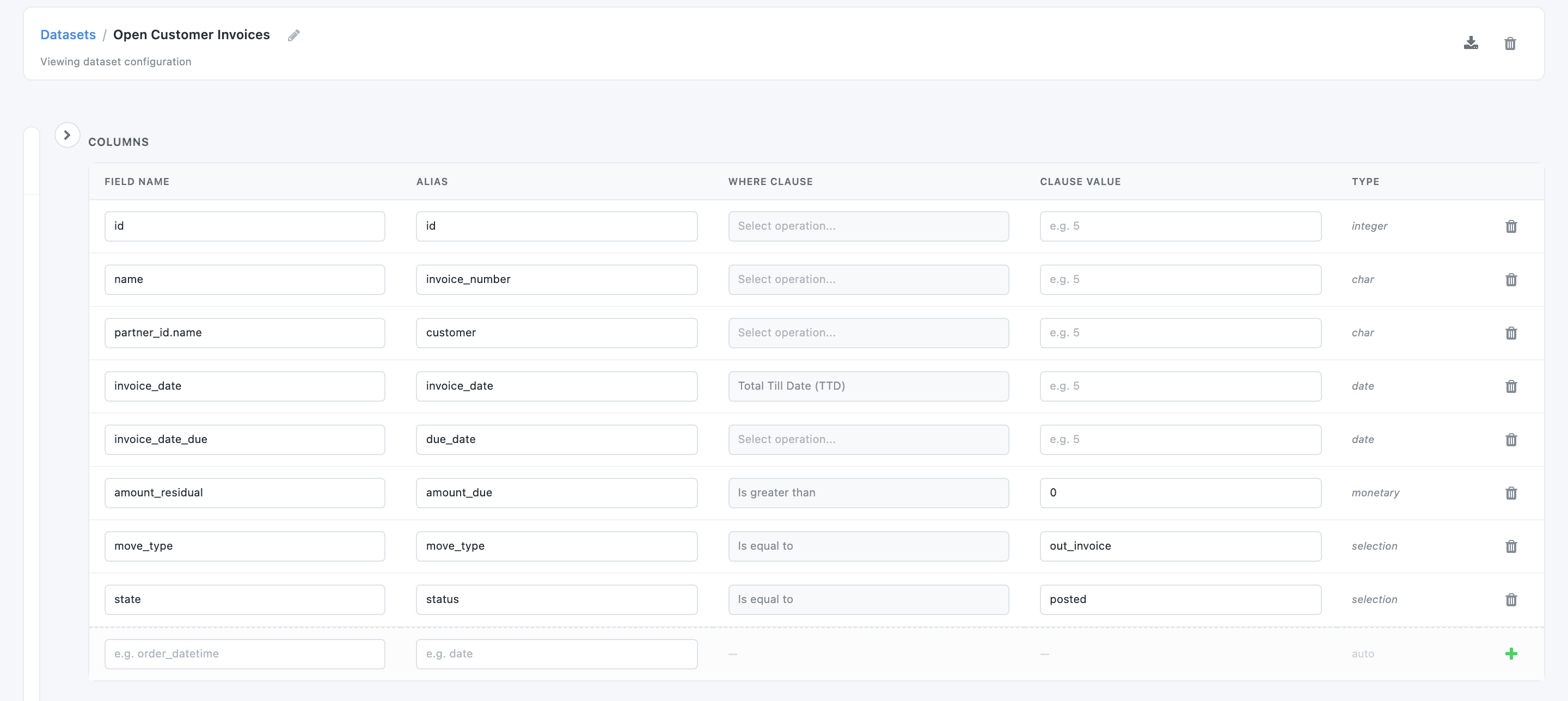

You need one row per open customer invoice with its customer, due date and amount still due. Create a dataset called Open Customer Invoices on the Journal Entry model (account.move), with these columns:

Field Name	Alias	Where Clause	Clause Value
id	id
name	invoice_number
partner_id.name	customer
invoice_date	invoice_date	Total Till Date (TTD)
invoice_date_due	due_date
amount_residual	amount_due	Is greater than	0
move_type	move_type	Is equal to	out_invoice
state	status	Is equal to	posted

The four Where Clauses keep posted customer invoices that still have something to pay and are dated today or earlier. Every widget built on the dataset inherits them, so an Amount Due tile on it is one click: Sum of amount_due.

Tip

Credit notes (out_refund) are left out here. To net them off, use Is in list with out_invoice,out_refund on move_type, take the amount from the signed field amount_residual_signed (negative for credit notes), and change its Where Clause to Is not equal to 0.

2. The table

1. In the Dashboard Builder, click New Item, name it Aged Receivables, and pick Table and Open Customer Invoices.

2. On the Configuration tab, add these columns. Pick customer from the list; type each other expression in the Field box and press Enter:

   Alias	Field
   Customer	customer
   Not Due	SUM(CASE WHEN due_date >= CURRENT_DATE THEN amount_due ELSE 0 END)
   1-30 Days	SUM(CASE WHEN CURRENT_DATE - due_date BETWEEN 1 AND 30 THEN amount_due ELSE 0 END)
   31-60 Days	SUM(CASE WHEN CURRENT_DATE - due_date BETWEEN 31 AND 60 THEN amount_due ELSE 0 END)
   61-90 Days	SUM(CASE WHEN CURRENT_DATE - due_date BETWEEN 61 AND 90 THEN amount_due ELSE 0 END)
   90+ Days	SUM(CASE WHEN CURRENT_DATE - due_date > 90 THEN amount_due ELSE 0 END)
   Total Due	SUM(amount_due)

3. Set Group By to customer. Type SUM(amount_due) in Order By, press Enter, and tick Order Descending, so the biggest debtors come first.

4. Format each amount column (gear → Format): Number, 0 Decimal places, and — in Show for zero and Show for empty values. A dash reads faster than a column of zeros.

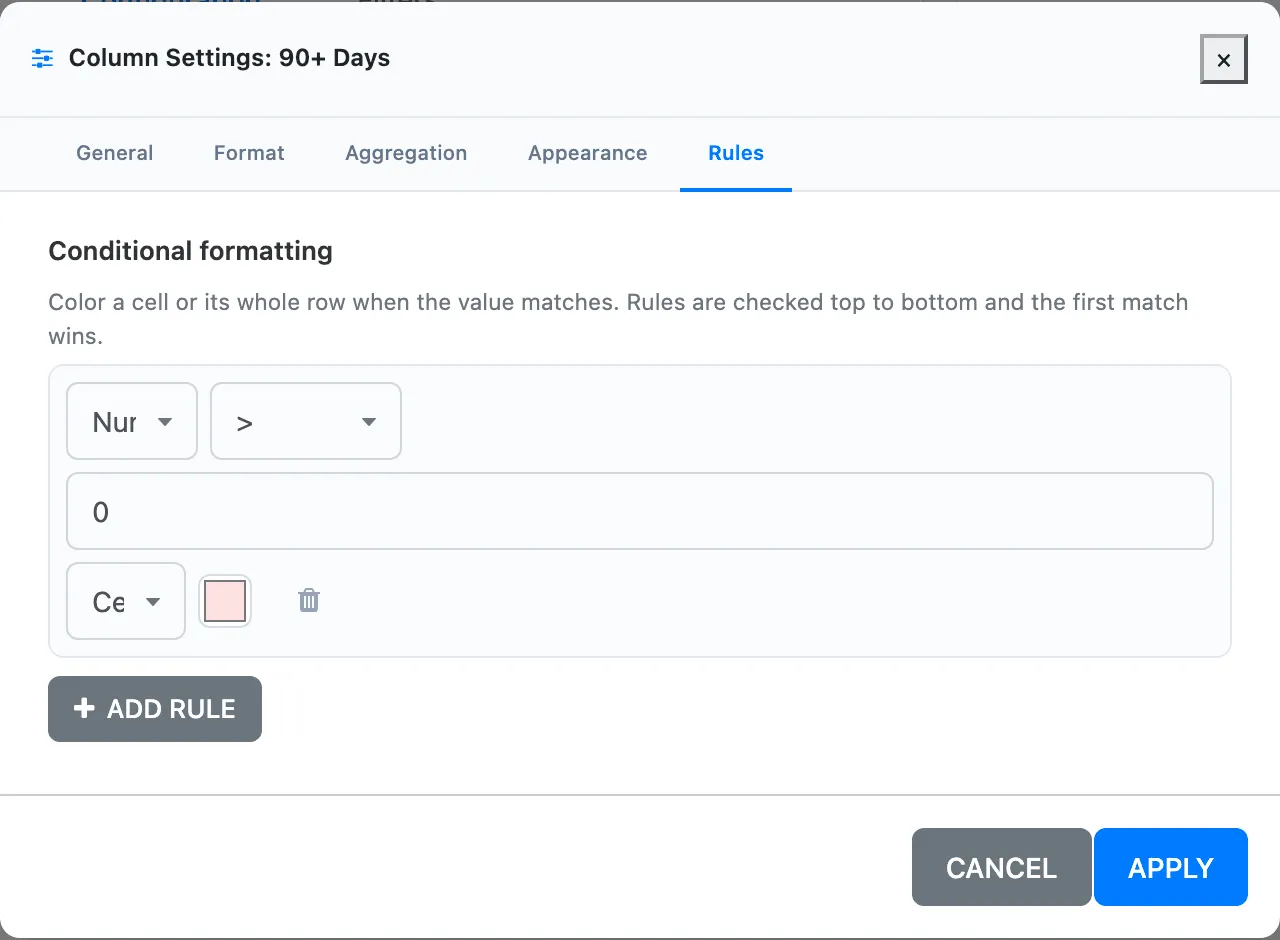

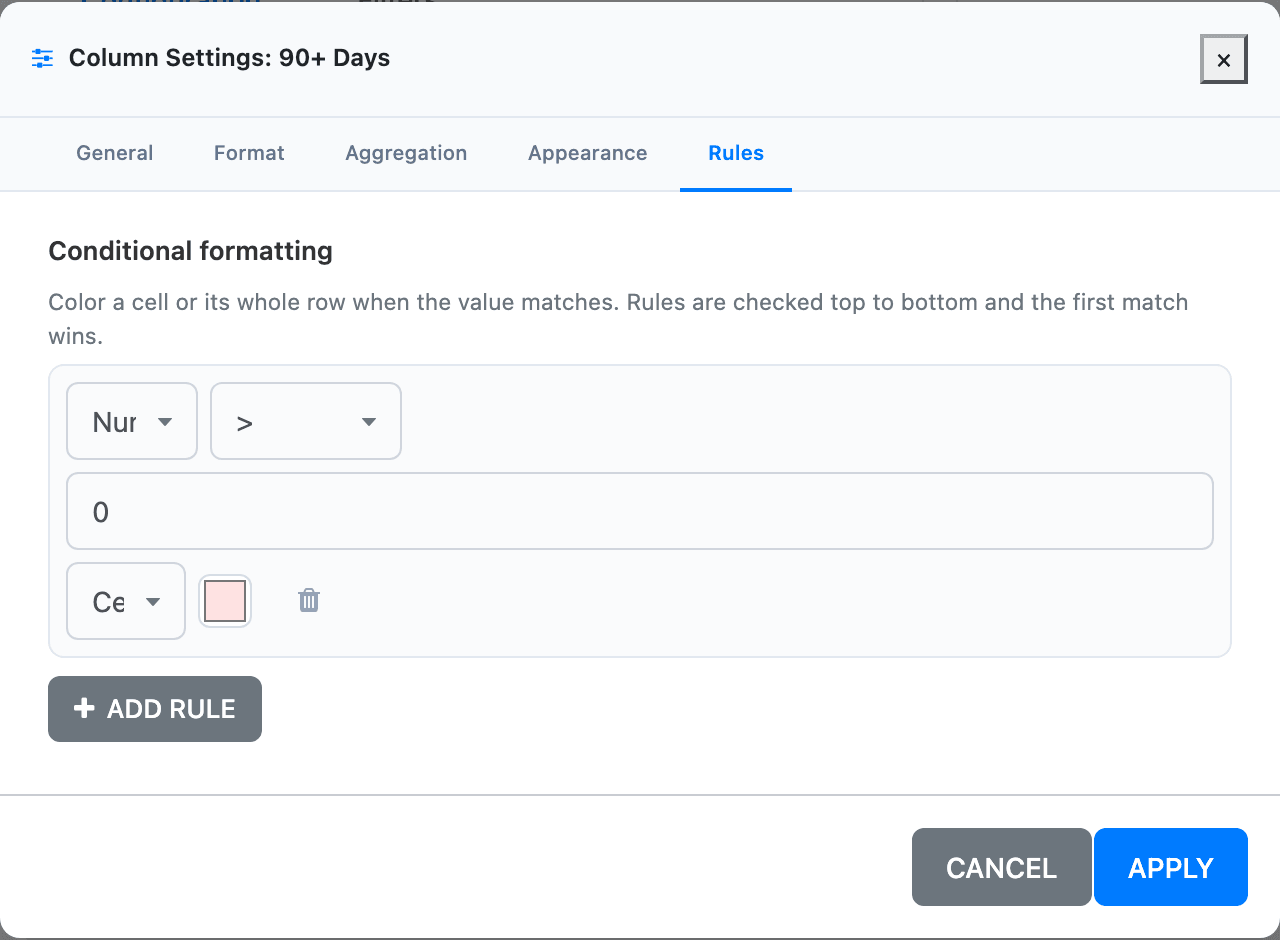

5. Colour the buckets (gear → Rules → + Add rule): Number, >, 0, scope Cell, and a colour per bucket. This recipe uses green for 1-30 Days, light blue for 31-60, amber for 61-90 and red for 90+.

6. Under Advanced, tick Show Totals. Leave the Filters tab empty: the table is “as of today”, whatever date someone picks on the dashboard.

7. Click Save & Preview.

Why it works

• due_date is a date column, so CURRENT_DATE - due_date is a whole number of days. Each bucket is a SUM(CASE …) that adds the amount due only when the days late fall in its range, and 0 otherwise. The buckets never overlap, so they add up to Total Due.
• The rule tests the raw value, not the dash on screen. A bucket with nothing in it is 0, which isn’t greater than 0, so it stays white.
• Show Totals adds a row under the header that sums each column over every customer, on every page.

The totals match the Receivables Ageing table on the Invoicing & Receivables dashboard, which splits the same 713,737 by sales team.

Note

If your due date is a date-and-time column, write CURRENT_DATE - due_date::date. Date-and-time columns in model datasets are shifted to the Asia/Riyadh time zone.

Variations

• More buckets. Split 90+ into 91-120 and 120+ with BETWEEN 91 AND 120 and > 120, and colour 91-120 orange.
• Ageing by salesperson or team. Add the salesperson to the dataset (invoice_user_id.partner_id.name) and group by it instead of the customer.
• Over 90 % column. Share of the amount due that is more than 90 days late: ROUND((100.0 * SUM(CASE WHEN CURRENT_DATE - due_date > 90 THEN amount_due ELSE 0 END) / NULLIF(SUM(amount_due), 0))::numeric, 1), formatted as Percentage with Multiply by 100 off. Colour bands: under 10 green, 10 to 30 amber, over 30 red.
• Drill into the invoices. Under Drilldown Options, tick Enable Drilldown with Drilldown Field id. Clicking a customer then opens their open invoices. See Drilldown.

Related: Column formats, Conditional formatting, Totals and % of group.
